E-Polation Professional Type-W

E-Polation Professional Type-W

Feature

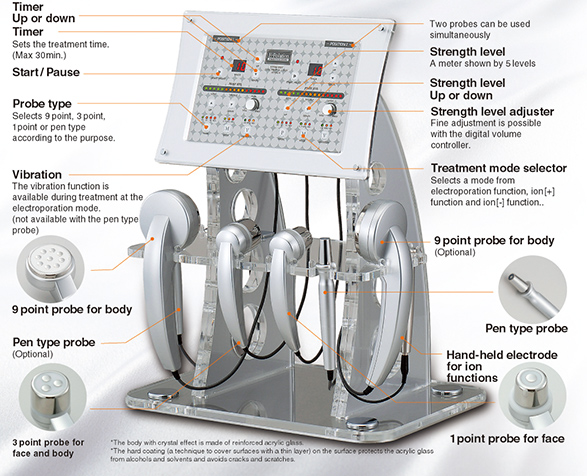

  • This is a professional specification machine with a “W screen” and “W probe” system that has the functions of two devices in one.
  • The left and right W screens that have been divided into position I and position II are capable of operating independently of each other, so it is possible to use on two different customers at the same time. *Each position can be set to the different modes of either “E/P” or “ion” and can be started at different times.
  • The probes connected to each of the left and right positions can be used at the same time in accordance with each setting
    1. Revenue will double because two different treatments (facial & body) can be performed at the same time on one customer
    2. Revenue will go up with an improvement to the bed rotation rate from shortening the treatment time because it is possible to perform treatment on the body (both arms and legs) over an extensive area
    3. It is possible to perform treatment quickly for complex and detailed care of unevenness without having to change the settings of the machine by using two different types of probe (e.g. 1P and pen) in facial care
  • It is possible to achieve an operating rate equivalent to that of two devices in substance by utilizing the W screen and W probe. You can expect a significant reduction in treatment times and a doubling of actual profits/efficiency *The optional probe set is necessary in order to fully take advantage of the W probe functions.

Electroporation

Electroporation Image

Essentially, electroporation is a biotechnology used in gene recombination technologies as a method in which electrical stimulation is utilized to directly infuse useful genes into target cells. The “E-Polation Series” are devices based on this basic electroporation introduction technology that has been developed as a method to seek beauty and health effects with the application of this electroporation technology.

Electroporation introduction technology applies special short and strong pulses to the skin to form transmission pathways in epithelial cells and especially the inner wall cells of holes such as pores/sweat glands in the skin. Through this, it has become possible to introduce under the dermis layer normally difficult to permeate hydrophilic molecules, ultra-high-molecular hyaluronic acid and succinyl atelocollagen, as well as active ingredients such as fucoxanthin, phosphatidylcholine, FGF-1, FGF-7, chondroitin sulfate and N-acetyl glucosamine.

Basic Features

Polation mode Hydrophilic molecules and high polymer molecules are introduced below the dermis layer by the electroporation action.
Ion mode A synergistic effect can be obtained by combined use with the E/P mode with the skin being stimulated (-) or calmed (+) prior to treatment.
Vibration An electrical stimulation reduction effect and massage effect can be obtained by vibrations.

Specification

Product name E-Polation Professional Type-W
Rated voltage AC100V
Rated frequency 50Hz/60Hz
Power consumption 10W
Main body outer size W380×D280×H503 (mm・maximums)
Raw Materials Rainforced acryl glass *(The main body)
Weight About 8.6kg
Country of manufacture Japan (MADE IN JAPAN)
Price 1,358,000 yen (excluding tax)
Please inquire for the salon price. *Leasing and credit are available.
*Please take special care in handling the acryl glass.

Main body ×1
(1) 9 point probe(Integrated with connection cable) ×1
(2) 3 point probe(Integrated with connection cable) ×1
(3) 1 point probe(Integrated with connection cable) ×1
(4) Pen type probe(Integrated with connection cable) ×1
(5) Hand-held electrode for the iron functions ×2
(6) Connection cable for the hand-held electrode ×2
(7) Power cable ×1
(8) Pug / socket ×1

(9) 9 point probe(Integrated with connection cable) ×1
(10) Pen type probe(Integrated with connection cable) ×1
Option price 215,000 yen (excluding tax)
Please inquire for the salon price.

Treatment Examples

FACE

FACEExample of use

BODY

BODYExample of use

Variations

E-Polation performs various treatments in one device depending on the EP Essence Series used and the type of probe selected, so it is possible to expect an extensive range of beauty effects.

Target Probe Essence and Expected Beauty Effect
Facial Pen type probe, 1 point probe, 3 point probe EP Essence SA(succinyl atelocollagen) EP Essence SA
(succinyl atelocollagen)
Firm tone and elasticity with immediate effect
EP Essence FX(fucoxanthin) EP Essence FX
(fucoxanthin)
Removal of wrinkles/liver spots and suppression of photo-aging and wrinkles
Bio Ultra Essence Bio Ultra Essence
Promotion of the regeneration of dermal collagen and improvement to acne scars
Diet (Petite Face) 9 point probe, 3 point probe EP Essence PC(phosphatidylcholine) EP Essence PC
(phosphatidylcholine)
Lipolysis, localized slimming and facial slimming with no painful side effects

Click here for information on essences

Evidence

The E-polation Series ® our electroporation introduction devices has been used in many usefulness tests and research projects with the cooperation of Japanese subjects in third party medical institutions and university laboratories. Therefore, evidence (the scientific basis) which forms the patent theory has been built by physicians, doctors of engineering and doctors of science based on these results.

Usability survey reports on the facial beauty and slimming effect of E-polation

Editor: Shigeru Suzuki, MD and Director of Otemachi Park Clinic

Theoretical background on the results of E-polation

Masako Koyanagi (Doctor of Engineering), Medical Intelligence Co., Ltd.

Theoretical background on the slimming effect of E-polation PC (phosphatidylcholine)

Masako Koyanagi (Doctor of Engineering), Medical Intelligence Co., Ltd.

Bipolar electroporation device E-Polation research

Editor: Toyotoshi Ueda (Doctor of Science), Professor in the Department of Chemistry in the Faculty of Science and Technology at Meisei University

Patents

Electroporation introduction devices are products based on the patented technologies (1) and (2) below held by our firm. Furthermore, EP Essence and FX/Fucoxanthin are products that have been licensed based on the patented technology below held by Kyoto University. However, “E-polation” and “E-Pessence” are registered trademarks of this firm.

  1. (1) Patent on the Basic Introduction of Electroporation
    Patent Number: Patent No. 5397974
    Invention Name: Drug Administration Device
    Patentee: BEATIFIC Co., Ltd.
  2. (2) Patent on Electroporation Hair Restoration Technology
    Patent Number: Patent No. 5397975
    Invention Name: Hair Restoration Agent Introduction Device
    Patentee: BEATIFIC Co., Ltd.
  3. (3) Patent on the angiogenesis and wrinkle inhibitory effects from fucoxanthin
    Patent number: Patent No. 5223083
    Invention Name: Angiogenesis Inhibitor
    Patentee: Kyoto University

BEATIFIC Electroporation Patent Certificate

E-Polation Series: Genuine Essences

Pure Essence: EP Essence Premium Series

The “EP Essence Series” are special essences for electroporation introduction that are formulated from various active ingredients centered on high polymer hyaluronic acid without using any synthetic vinyl polymers used as gelling agents in general foundation cosmetics.

  • EP Essence SA Premium

    Firm tone and elasticity with immediate effect

    EP Essence SA Premium

    This is a high quality essence with a succinyl atelocollagen undiluted solution of 50% and a hyaluronic acid Na undiluted solution of 49.7%.

  • EP Essence FX Premium

    Removal of wrinkles/liver spots and suppression of photo-aging and wrinkles

    EP Essence FX Premium

    There is a wrinkle/liver spot (epidermal pigmentation) removal and photo-aging care essence with a retinoid-like active ingredient fucoxanthin (fucoxanthinol) formulation.

  • EP Essence PC Premium

    Lipolysis, localized slimming and facial slimming with no painful side effects

    EP Essence PC Premium

    This is an essence of a phosphatidylcholine (Purity concentration: 10%) formulation for dieting (fat breakdown) and localized slimming/facial slimming.

  • Bio Ultra Essence Premium

    Promotion of the regeneration of dermal collagen and improvement to acne scars

    Bio Ultra Essence Premium

    There is an anti-aging (cell growth promotion) essence of fibroblast growth factor 1 (FGF-1).
